POWER MODULE

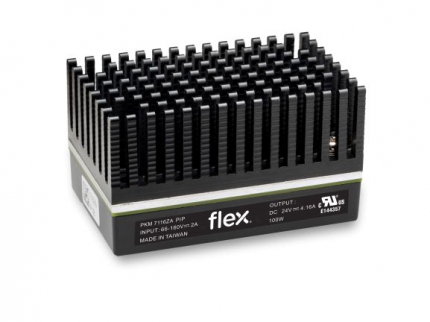

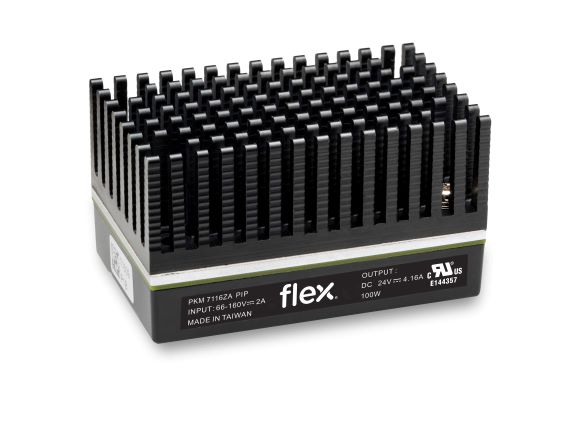

FLEX PKM-A series1/4 Brick 100-150W

Key Features

Input: 66-160V

Output: 150W

Industry standard case dimensions
Max heigt 12.7mm (0.5inch) without baseplate
Typical 89 percent at 24V Vout Full load
Heat sink options

Other Features:

3000Vdc input to output isolation
Meets requirements according to IEC/EN/UL 60950-1
Compliant to EN50155

66-160 V Input:

Vout (V)	Iout (A)	Pout (W)	Part No
5	20	100	PKM7111A PIP
12	8.33	100	PKM7113A PIP
15	6.66	100	PKM7115A PIP
24	4.16	100	PKM7116ZA PIP
12	12.5	150	PKM7213A PIP
15	10	150	PKM7215A PIP
24	6.25	150	PKM7216ZA PIP
