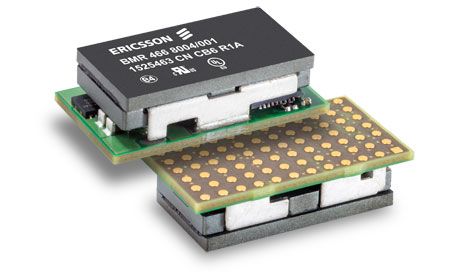

The BMR466 digital POL family provide flexible solutions with high power density, low electrical and thermal resistance to application board with only a 7mm height. Enabling system solutions up to 480A. Providing a line, load and temperature stable output voltage accuracy of max 1% down to 0.6V.
The BMR466 digital platform are easily adopting to new requirements in all product development phases, optimized by Ericsson dedicated design tool, EPD. Designed and manufactured with 6 sigma quality and a high mean time between failures of 50 million hours. BMR466 enables short TTM and flexible confident solutions based on 30+ years experiences.
Key Features
Input: 4.5 - 14 V
Output: 60 A/108 W
- LGA
- Max height 7 mm (0.276 inch) for LGA
- 94.4 percent efficiency at 1.8 V (typical value at half load)
- PMBus read and write compliant
Other Features:
- Fully regulated
- Adaptive compensation of PWM control loop & fast loop transient response
- Remote Control & Power Good
- Voltage setting via pin-strap or PMBus
- Advanced Configurable via Graphical User Interface
4.5-14 V Input:
| Vout (V) |
Iout (A) |
Pout (W) |
Part No |
|
| 0.6-1.8 |
60 |
108 |
BMR466 8004/001C |
|
The BMR466 3E POL is also available with different options. For more details, see Technical Specification under Downloads.
